Product Description:
Qualtech Products Industry Wet Film Thickness Gauge is a precision engineered Wet Film Comb to accurately measure the Wet Film Coating Thickness applied onto a substrate.
A coating is applied onto a surface to either cover the surface completely or partially. The object and surface a Coating is applied onto is usually called Substrate.
To measure the Coating Thickness this professional Wet Film Thickness Gauge is placed in a vertical position onto a wet coated sample surface to measure the coating thickness. The coating thickness is indicated by the precision graduation presented on the Wet Film Thickness Gauge.
The Wet Film Thickness Gauge is used to measure the exact thickness of the fresh coating on the substrate.
This professional Comb Wet Film Thickness Gauge is precision engineered offering high accuracy and high precision and is made of high quality corrosion resistant materials with a precision graduation to ensure accurate coating thickness measurements and reliable performance combined with a user-friendly application, an ergonomic design and longevity.

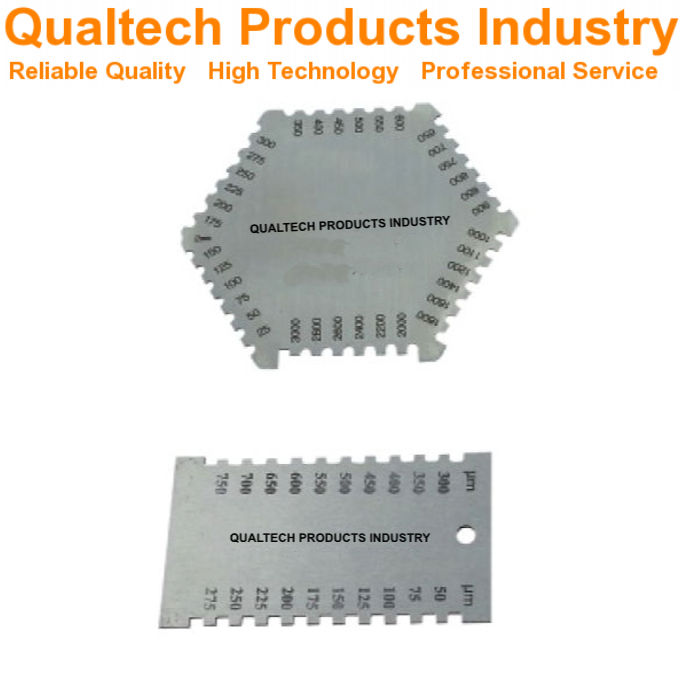

This professional Wet Film Notch Gauge is made of high quality materials and is available in different configurations:
- Long Edge Comb Wet Film Thickness Gauge
- Square Wet Film Thickness Gauge
- Hexagonal Wet Film Thickness Gauge
This professional Wet Film Gauge is designed and engineered in accordance with international test standards including:
- ASTM D823 (Standard Practices for Producing Films of Uniform Thickness of Paint, Coatings and Related Products on Test Panels)
- ASTM D1212 (Standard Test Methods for Measurement of Wet Film Thickness of Organic Coatings)
- ASTM D4414 (Standard Practice for Measurement of Wet Film Thickness by Notch Gages)
- ISO 2808 (Paints and varnishes — Determination of film thickness)
- BS 3900-C5 (Paints and varnishes. Determination of film thickness)
- AS/NZS 1580.107.3 (Paints and related materials - Methods of test - Determination of wet film thickness by gauge)
- US Navy NSI 009-32 (Wet Film Comb)
Wet Film Notch Gauge - Features:
- Newest Material Technology
- Professional Application
- Precision Engineered
- Precision Graduation
- User-friendly Application
- Carefully Calibrated
- High Accuracy & High Precision
- Ergonomic Design
- Reliable Performance & Longevity
- Engineered in accordance with international test standards including ASTM D823, ASTM D1212, ASTM D 4414, ISO 2808, BS 3900-C5, AS/NZS 1580.107.3, US Navy NSI 009-32
Wet Film Tickness Gauge – Specifications:
| Model | Graduation | Design |
|---|---|---|
| QPI-WFG100 | 10µm - 100µm with 10µm increments | Comb Wet Film Gauge |
| QPI-WFG200 | 20µm - 200µm with 20µm increments | Comb Wet Film Gauge |
| QPI-WFG300 | 50µm - 750µm with 25µm or 50µm increments | Comb Wet Film Gauge |
| QPI-WFG400 | 50µm - 950µm with 50µm | Comb Wet Film Gauge |
| QPI-WFG500 | 250µm -700µm with 50µm increments | Comb Wet Film Gauge |
| QPI-WFG600 | 300µm - 2600µm with 100µm increments | Square Wet Film Gauge |
| QPI-WFG700 | 25µm - 3000µm | Hexagonal Wet Film Gauge |
Wet Film Thickness Gauge – Included items:
- Professional Wet Film Thickness Gauge
- Carrying Box
- Carefully Calibrated
- Calibration Certificate
- Quality Certificate
- Extended Warranty
- Lifetime Support
- User Manual
