Product Description:

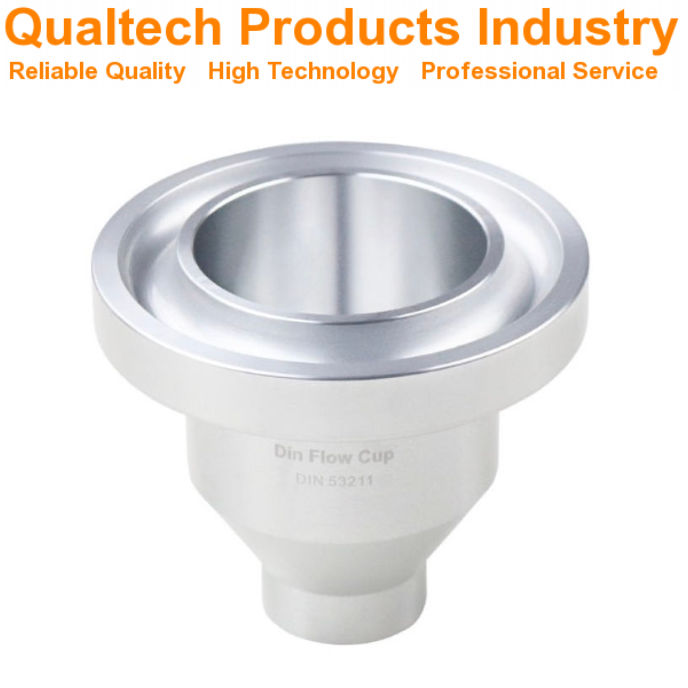

Qualtech Products Industry DIN Viscosity Flow Cup – DIN Cup 53211 – is a precision Viscosity Measurement Cup designed and engineered in accordance with the German Test Standard DIN 53211 to measure the viscosity of liquid samples.
This precision DIN Viscosity Flow Cup is precision engineered offering highest quality and highest precision. This professional DIN Cup 53211 is made of Anodized Aluminium with a beautiful highly polished finishing combined with a precision engineered orifice to ensure high accuracy and high repeatability combined with a user-friendly application. This precision DIN Cup is the ideal Viscosity Measurement Instrument for research & quality management.
This precision Din Cup 53211 and DIN Viscosity Flow Cup is designed to measure the viscosity of a wide variety of sample liquids including varnishes, paint and related liquids.
To measure the viscosity of an experimental sample with this DIN Flow Cup the Flow Time is measured in Seconds (s) and then converted into Centistokes (cSt) presenting the viscosity value of the measured sample.
This professional DIN Cup 53211 – DIN Viscosity Flow Cup – is designed and engineered in accordance with the German DIN Standard:
DIN Cup - Features:
- Professional DIN Flow Cup
- Precision Viscosity Measurement
- Precision engineered
- High accuracy & High precision
- Available in five models
- Optional available Nozzles
- Made of high quality materials
- User-friendly application
- Reliable performance & High repeatability
- Engineered in accordance with the German Test Standard DIN 53211
- Ergonomic Design & Longevity
DIN Flow Cup DIN 53211 – Specifications:
| Model | QPI-DIN2 | QPI-DIN4 | QPI-DIN6 | QPI-DIN8 | QPI-DIN4H | QPI-DIN6H | QPI-DIN8H | QPI-DINNOZ | QPI-DINSH |
|---|---|---|---|---|---|---|---|---|---|
| Design | DIN Cup | DIN Cup | DIN Cup | DIN Cup | DIN Cup with Handle | DIN Cup with Handle | DIN Cup with Handle | DIN CUP NOZZLES | DIN CUP Stand |
| Volume | 100ml ±1ml | 100ml ±1ml | 100ml ±1ml | 100ml ±1ml | 100ml ±1ml with Handle | 100ml ±1ml with Handle | 100ml ±1ml with Handle | Engineered for the 100ml DIN Cup | |
| Orifice Ø | 2mm ±0.02mm | 4mm ±0.02mm | 6mm ±0.02mm | 8mm ±0.02mm | 4mm ±0.02mm | 6mm ±0.02mm | 8mm ±0.02mm | 2mm, 4mm, 6mm, 8mm ±0.02mm | |
| DIN Cup Material | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | |
| Orifice Material | Stainless Steel, Interior polished | Stainless Steel, Interior polished | Stainless Steel, Interior polished | Stainless Steel, Interior polished | Stainless Steel, Interior polished | Stainless Steel, Interior polished | Stainless Steel, Interior polished | Stainless Steel, Interior polished | Stainless Steel, Interior polished |
| Test Standard | DIN 53211 | DIN 53211 | DIN 53211 | DIN 53211 | DIN 53211 | DIN 53211 | DIN 53211 | DIN 53211 | DIN 53211 |
DIN Cup DIN 53211 – Included items:
- Precision DIN Cup
- Carefully Calibrated
- Quality Certificate
- Calibration Certificate
- Extended Warranty
- Lifetime Support
- User Manual
