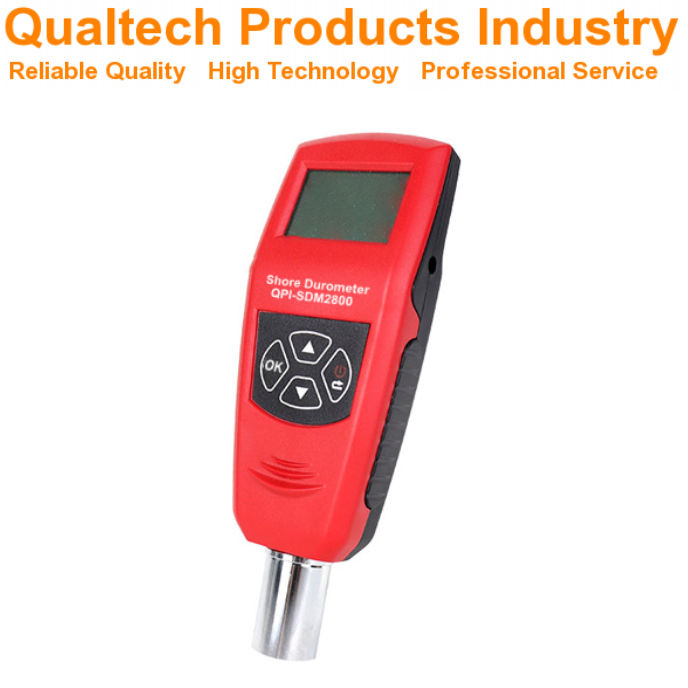

Product Description:
Qualtech Products Industry Shore Durometer is a precision Shore Hardness Tester to instantly measure the Shore Hardness and the Depth of Indentation of a wide range of samples including rubber, polymer, elastomer at the touch of button. This professional Handheld Shore Indentation Hardness Meter is available with a variety of precision engineered Shore Indenters including A, B, C, D, E, OO, O, DO.
The Shore Durometer Test Method integrates the Shore Hardness Scale introduced by Albert Ferdinand Shore.
The Shore Hardness Test is performed by indentation, a specified indenter penetrates the sample surface with a specified force. The depth of indentation represents the Shore Hardness of the sample.The Shore Durometer measures the viscoelastic properties of samples in accordance with the Shore Hardness Scale at the touch of a button.
This advanced Shore Durometer measures samples in accordance with the Shore Scales:
- Shore A
- Shore C
- Shore D
This professional Handheld Shore Durometer offers the newest microchip technology combined with a large LCD Display with Backlight. comfortable Softtouch Buttons, a variety of precision engineered Shore Indenters including A B C D E OO O DO, Automatic Calibration, wide range of Measurement Units including HA, HC, HD, user-friendly Application, user-friendly Sample Handling, intuitive Menu Navigation, Dust Proof Design, High Accuracy & High Precision, large integrated Memory, Wireless Printing, optional Stainless Steel Stand, beautiful Carrying Case, rechargeable Li-Ion Battery, extensive Battery Life, seamless PC-Connectivity via USB and PC Software, ergonomic design, reliable performance and much more.
This professional Shore Hardness Indentation Meter is designed and engineered in accordance with international test standards including:
- ASTM D2240 (Standard Test Method for Rubber Property—Durometer Hardness)
- ISO 868 (Plastics and ebonite — Determination of indentation hardness by means of a durometer (Shore hardness))
- ISO 7267 (Rubber-covered rollers — Determination of apparent hardness — Part 1: IRHD method)
- ISO7619 (Rubber, vulcanized or thermoplastic — Determination of indentation hardness — Part 1: Durometer method (Shore hardness))
- DIN53505 (Testing of rubber - Shore A and Shore D hardness test)
Shore Durometer Indentation Hardness - Application:
The Shore Durometer is a precision Shore Hardness Tester to instantly measure the Shore Hardness and the Depth of Indentation of a wide range of samples including rubber, polymer, elastomer at the touch of button. This professional Handheld Shore Indentation Hardness Meter is available with a variety of precision engineered Shore Indenters including A, B, C, D, E, OO, O, DO.
The Shore Durometer Test Method integrates the Shore Hardness Scale introduced by Albert Ferdinand Shore.
The Shore Hardness Test is performed by indentation, a specified indenter penetrates the sample surface with a specified force. The depth of indentation represents the Shore Hardness of the sample.The Shore Durometer measures the viscoelastic properties of samples in accordance with the Shore Hardness Scale at the touch of a button.
This advanced Shore Durometer measures samples in accordance with the Shore Scales:
- Shore A
- Shore C
- Shore D
Shore Hardness Indentation Tester - Features:
- Newest Microchip Technology
- Instant Shore Hardness Test

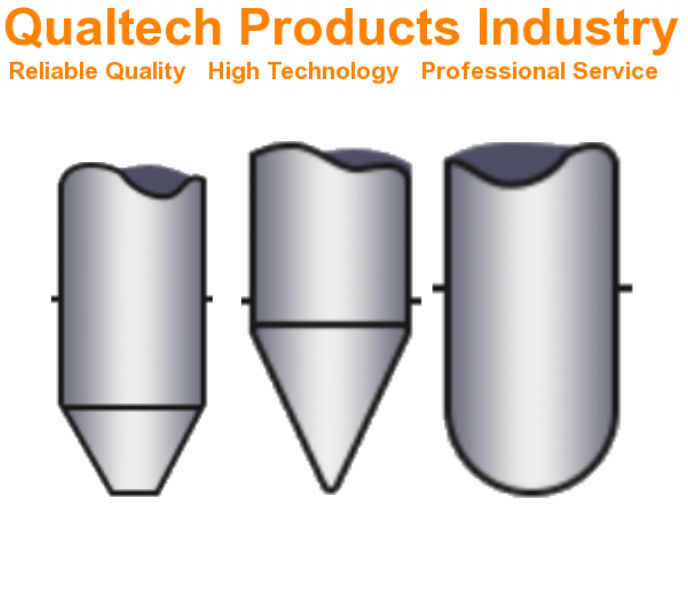

- Available Shore Hardness Indenter A, B, C, D, E, O, OO, DO
- Large LCD Display with Backlight
- Comfortable Softtouch Buttons
- Dust Proof Design
- Precision engineered Indenter
- Wide range of Shore Measurement Scales
- User-friendly Application
- User-friendly Sample Handling
- Intuitive Menu Navigation
- Suitable for a wide range of materials including Fabrics, Gels, Sponges, Leather, Rubber, Plastic an many more
- Large Integrated Memory
- High Accuracy & High Precision
- Rechargeable Li-Ion Battery
- Extensive Battery Life
- Wireless Printing
- Seamless PC-Connectivity & PC-Software
- Optional Stainless Steel Stand
- Included beautiful Carrying Case
- Ergonomic Design
- Reliable Performance & Longevity
- Engineered in accordance with international test standards including ASTM D2240, ISO 868, ISO 7267, ISO 7619, DIN 53505
Shore Hardness Meter - Specifications:
Model | QPI-SDM1800 | QPI-SDM2800 | QPI-SDM3800 | QPI-SDM4800 | QPI-SDM5800 | QPI-SDM6800 | QPI-SDM7800 | QPI-SDM8800 |
---|---|---|---|---|---|---|---|---|
Newest Microchip Technology | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Large LCD Display with Backlight | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Comfortable Softtouch Buttons | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Measurement Range | 20 - 90 A | >90A - <20D | >90B - <20D | >90A | >90DO - <20D | <20O | <20DO | <90C - <20D |
Shore Hardness Indenter | A | B | C | D | E | OO | O | DO |
Application | Elastomer Soft Rubber Natural Rubber Neoprene Resin Polyester Soft PVC Nitrile TPE Flexible Polyacrylics Flexible Thermosetting Polymer Leather | Medium Hard Rubber Plastic Rollers | Medium Hard Rubber Hard Rubber Plastic | Hard Rubber Hard Plastic Fibre-reinforced Plastic Acrylic Glass Thermoplastic Cellulose Acetate | Hard Sponge Material EVA | Sponge Rubber Cellular Rubber Foam Rubber Silicone Gel Materials | Soft Elastic Samples Medium Firm Fabrics Medium Firm Textiles Orlon Nylon Perlon Rayon | Medium Hard Plastic Hard Plastic Hard Rubber Samples |
Accuracy | ≤±1% HA | ≤±1% HA | ≤±1% HA | ≤±1% HA | ≤±1% HA | ≤±1% HA | ≤±1% HA | ≤±1% HA |
Display Resolution | 0.1 H | 0.1 H | 0.1 H | 0.1 H | 0.1 H | 0.1 H | 0.1 H | 0.1 H |
Integrated Memory | 500 Measurements | 500 Measurements | 500 Measurements | 500 Measurements | 500 Measurements | 500 Measurements | 500 Measurements | 500 Measurements |
Automatic Calibration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
User-friendly Menu Navigation | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
User-friendly Application | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
User-friendly Sample Handling | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Dust Proof Design | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Instant Sample Measurement | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Li-Ion Battery | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Extensive Battery Life | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Seamless PC-Connectivity & PC Software | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Ergonomic Design | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Reliable Performance & Longevity | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Battery Charger Voltage | 110V - 240V 50Hz/60Hz | 110V - 240V 50Hz/60Hz | 110V - 240V 50Hz/60Hz | 110V - 240V 50Hz/60Hz | 110V - 240V 50Hz/60Hz | 110V - 240V 50Hz/60Hz | 110V - 240V 50Hz/60Hz | 110V - 240V 50Hz/60Hz |
Engineered in accordance with international test standards including ASTM D2240, ISO 868, ISO 7267, ISO 7619, DIN 53505 |
Shore Durometer – Included items:
- Expert Shore Durometer
- Accessories
- Carrying Box
- PC-Software
- Quality Certificate
- Carefully Calibrated
- Calibration Certificate
- User manual
- Extended Warranty
- Lifetime Support
